APPLICATION

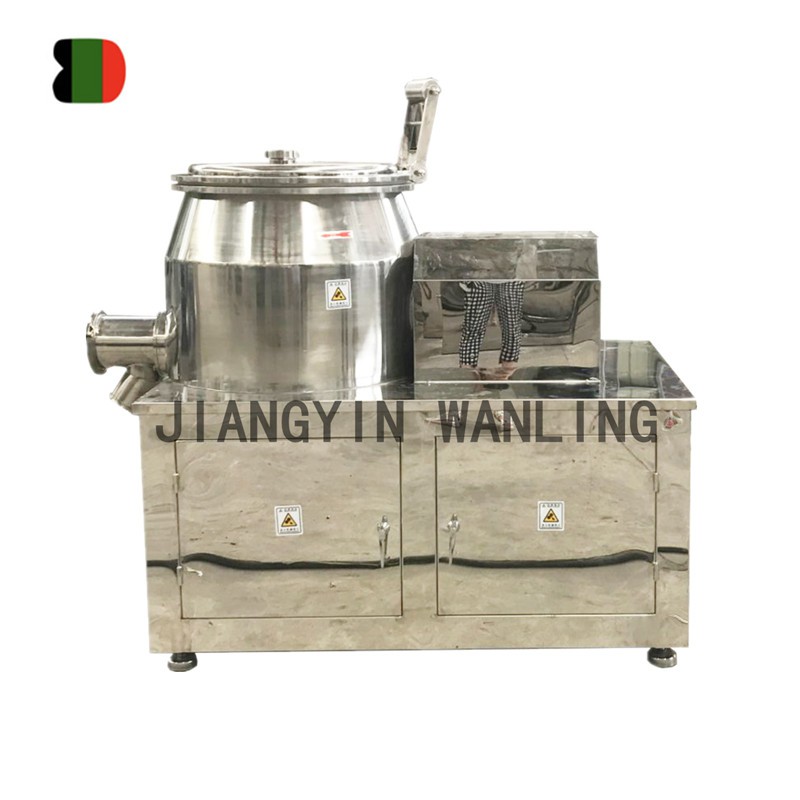

Rapid mixer granulator tshuab tuaj yeem siv dav hauv kev lag luam tshuaj, tshuaj lom neeg kev lag luam, kev lag luam khoom noj khoom haus, hmoov metallurgy, kev lag luam tshuaj pleev ib ce, kev lag luam tuag, thiab lwm yam.Qhov zoo ntawm RMG granulator tshuab muaj txiaj ntsig zoo; ceev ceev; txawm; sib tov thiab granulating nyob rau hauv tib lub chamber.
TECHNICAL PARAMETERS
|
Hom |
WHL-50 |
WHL-150 |
WHL-200 |
WHL-250 |
WHL-300 |
WHL-400 |
|
Ntim (L) |
50 |
150 |
200 |
250 |
300 |
400 |
|
Peev xwm (kg / batch) |
15 |
50 |
80 |
100 |
130 |
200 |
|
Blending ceev (rpm) |
300/210 |
270/180 |
270/180 |
188/130 |
160/110 |
120/85 |
|
Lub zog sib xyaw (KW) |
4/5.5 |
9/11 |
11/14 |
11/14 |
11/14 |
15/17 |
|
Txiav fais fab (KW) |
1.5/2.2 |
2.4/3 |
3.3/4 |
3.3/4 |
4.5/5.5 |
6.5/8 |
|
Txiav ceev (rpm) |
1440/2900 |
|||||
|
Lub sijhawm ua haujlwm (min) |
8-15 |
|||||
|
Particle loj (mesh) |
20-80 |
|||||
SIJ HAWM
(1) Lub tshuab sib tov ceev ceev granulator feem ntau muaj kev sib xyaw ua ke, txiav qhov system, thav duab, sib tov chim, hluav taws xob tswj lub thawv thiab lwm yam. Blending system muaj lub cev muaj zog, bearing pedestal thiab cutter riam. Cov ncej sib kis ntawm kev sib xyaw ua ke thiab cov tshuab txiav tshuab muaj cov cuab yeej cua tsis zoo los tiv thaiv cov khoom siv raw rau hauv cov ncej thiab cov roj ua paug rau nws.
(2) Lub tshuab sib xyaw yog tsau rau ntawm tus ncej; SUS304 qib high-qib stainless hlau; khoom, ruaj thiab stainless; columniform hauv qab thiab conical taub; tsis muaj lub kaum sab xis tuag, txawm tias sib tov, yooj yim tu; muaj lub pneumatic valve rau tso tawm ntawm ib sab ntawm qhov sib tov chim; tag nrho lub valve txuas nrog lub gemel, yog li nws yooj yim txav mus los rau kev kuaj xyuas thiab tu kom tiav.
