Taw qhia

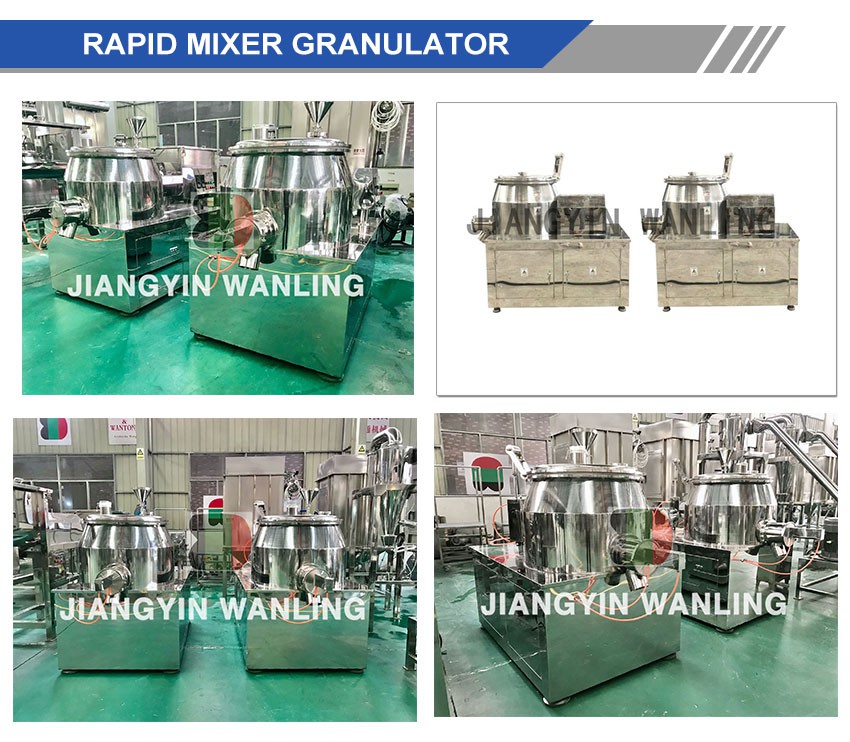

RMG granulator tshuab yog ntau yam tshuab uas tuaj yeem siv ntau yam kev lag luam rau kev tsim cov granules. Lawv muab kev sib xyaw ua haujlwm siab, sib xyaw granule loj, thiab yooj yim tu thiab tu, ua rau lawv xaiv rau cov neeg tsim khoom.
MAIN SRUCTURE
Muaj silicon-rubber airproof nplhaib nruab nrab ntawm cov khoom sib xyaw thiab lub thoob ntim; qhov txuas txuas ntxiv ntawm ob txoj hlua txuas yog airproofed los tiv thaiv cov khoom qias neeg rau hauv lub thoob.
Tsim kom muaj kev ruaj ntseg: Thaum lub hau npog thiab lub qhov tso tawm tau nthuav tawm, lub tshuab granulator nrawm nrawm thiab lub tshuab txiav tsis tuaj yeem pib.
TECHNICAL PARAMETERS
|
Hom |
WHL-50 |
WHL-150 |
WHL-200 |
WHL-250 |
WHL-300 |
WHL-400 |
|
Ntim (L) |
50 |
150 |
200 |
250 |
300 |
400 |
|
Peev xwm (kg / batch) |
15 |
50 |
80 |
100 |
130 |
200 |
|
Blending ceev (rpm) |
300/210 |
270/180 |
270/180 |
188/130 |
160/110 |
120/85 |
|
Lub zog sib xyaw (KW) |
4/5.5 |
9/11 |
11/14 |
11/14 |
11/14 |
15/17 |
|
Txiav fais fab (KW) |
1.5/2.2 |
2.4/3 |
3.3/4 |
3.3/4 |
4.5/5.5 |
6.5/8 |
|
Txiav ceev (rpm) |
1440/2900 |
|||||
|
Lub sijhawm ua haujlwm (min) |
8-15 |
|||||
|
Particle loj (mesh) |
20-80 |
|||||
KHOOM NTA
Sib tov sib npaug: Ua kom cov xim xim lossis cov xim sib npaug sib npaug;
Muaj peev xwm sib xyaw ua ke: ntub cov khoom sai nrog 8-12 feem pua thickness starch slurry;
PRODUCT APPLICATIONS
1. Kev lag luam kws tshuaj: cov tshuab granulator ceev tau siv dav hauv kev lag luam tshuaj rau kev tsim cov granules, uas yog siv los ua cov ntsiav tshuaj thiab tshuaj ntsiav.
2. Kev lag luam khoom noj khoom haus: Rmg tshuab tuaj yeem siv rau hauv kev lag luam khoom noj khoom haus los sib tov thiab granulate cov khoom xyaw rau cov khoom xws li lub zog tuav thiab cov khoom noj khoom haus.
3. Kev lag luam tshuaj: ceev tov khoom granulator RMG tuaj yeem siv rau hauv kev lag luam chemical los sib tov thiab granulate hmoov rau kev tsim cov chiv thiab lwm yam khoom siv tshuaj.
